Quick start#

Below is a short example show-casing some of the core functionalities of xDEM. To find an example about a specific functionality, jump directly to More examples.

Short example#

Note

xDEM relies largely on its sister-package GeoUtils for geospatial handling (reprojection, cropping, raster-vector interface, point interpolation) as well as numerics (NumPy interface). 🙂

xDEM revolves around the DEM class (a subclass of Raster), from which most methods can be called and the Coreg classes to build modular coregistration pipelines.

Below, in a few lines, we load two DEMs and a vector of glacier outlines, crop them to a common extent, align the DEMs using coregistration, estimate the elevation change, estimate elevation change error using stable terrain, and finally plot and save the result!

import xdem
import geoutils as gu

# Examples files: filenames of two DEMs and some glacier outlines
fn_dem_ref = xdem.examples.get_path("longyearbyen_ref_dem")
fn_dem_tba = xdem.examples.get_path("longyearbyen_tba_dem")
fn_glacier_outlines = xdem.examples.get_path("longyearbyen_glacier_outlines")

# Print filenames
print(f"DEM 1: {fn_dem_ref}, \nDEM 2: {fn_dem_tba}, \nOutlines: {fn_glacier_outlines}")
ERROR 1: PROJ: proj_create_from_database: Open of /home/docs/checkouts/readthedocs.org/user_builds/xdem/conda/stable/share/proj failed
DEM 1: /home/docs/checkouts/readthedocs.org/user_builds/xdem/checkouts/stable/examples/data/Longyearbyen/data/DEM_2009_ref.tif,
DEM 2: /home/docs/checkouts/readthedocs.org/user_builds/xdem/checkouts/stable/examples/data/Longyearbyen/data/DEM_1990.tif,
Outlines: /home/docs/checkouts/readthedocs.org/user_builds/xdem/checkouts/stable/examples/data/Longyearbyen/data/glacier_mask/CryoClim_GAO_SJ_1990.shp
# Open files by instantiating DEM and Vector
# (DEMs are loaded lazily = only metadata but not array unless required)
dem_ref = xdem.DEM(fn_dem_ref)
dem_tba = xdem.DEM(fn_dem_tba)
vect_gla = gu.Vector(fn_glacier_outlines)

# Clip outlines to extent of reference DEM (method from GeoUtils)
vect_gla = vect_gla.crop(dem_ref, clip=True)

# Create a mask from glacier polygons (method from GeoUtils)
mask_gla = vect_gla.create_mask(dem_ref)

# We convert the vertical CRS of one DEM to the EGM96 geoid
dem_ref.to_vcrs("EGM96", force_source_vcrs="Ellipsoid")

# Align the two DEMs with a coregistration: 3D shift + 2nd-order 2D poly
mycoreg = xdem.coreg.NuthKaab() + xdem.coreg.Deramp(poly_order=2)
mycoreg.fit(dem_ref, dem_tba, inlier_mask=~mask_gla)
dem_aligned = mycoreg.apply(dem_tba)

# Get elevation difference
dh = dem_ref - dem_aligned

# Derive slope and curvature attributes
slope, maximum_curvature = xdem.terrain.get_terrain_attribute(
    dem_ref, attribute=["slope", "maximum_curvature"]
)

# Estimate elevation change error from stable terrain as a function of slope and curvature
dh_err = xdem.spatialstats.infer_heteroscedasticity_from_stable(
    dh, list_var=[slope, maximum_curvature], unstable_mask=mask_gla
)[0]

# Plot dh, glacier outlines and its error map

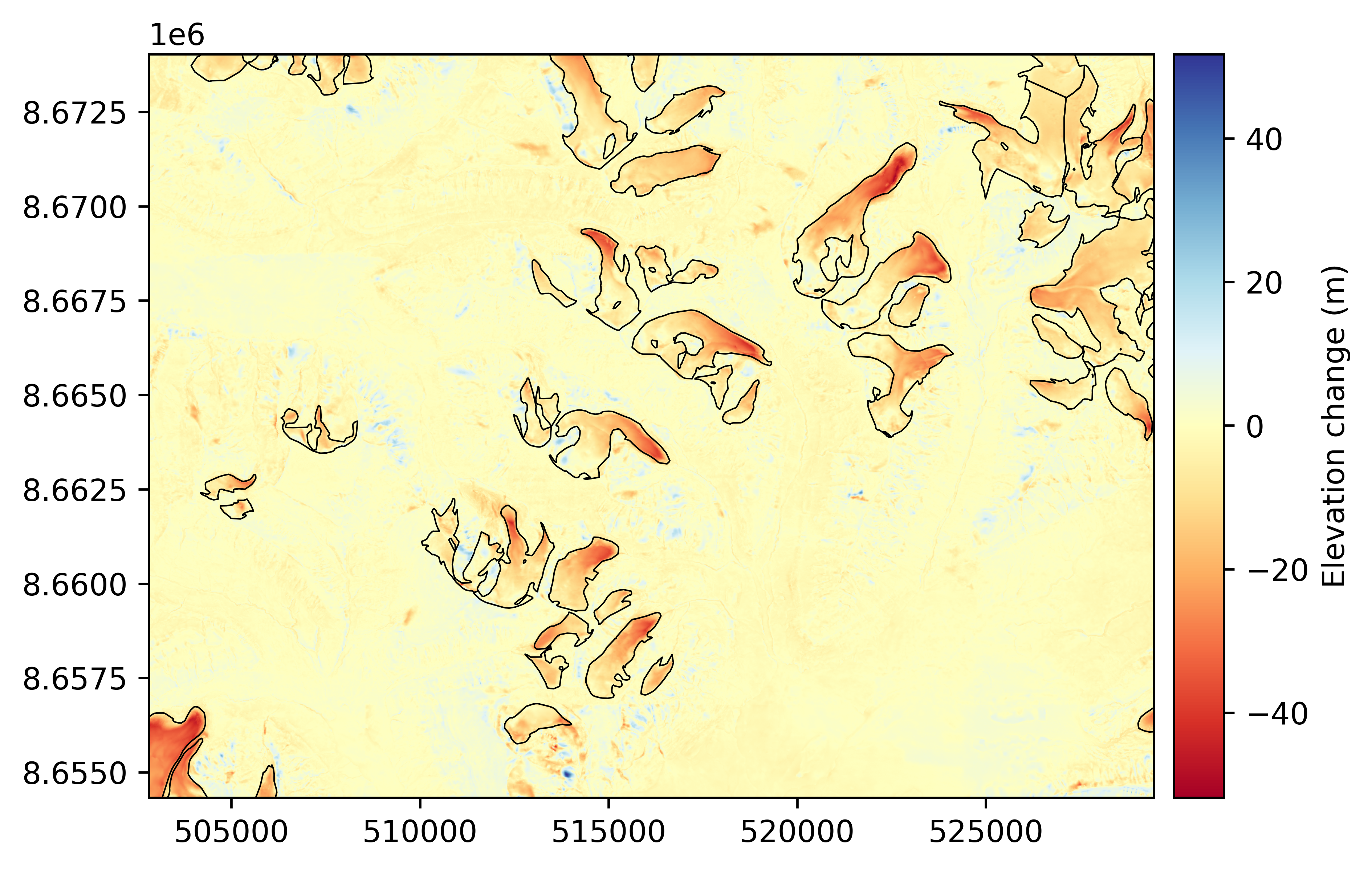

dh.plot(cmap="RdYlBu", cbar_title="Elevation change (m)")
vect_gla.plot(dh, fc='none', ec='k', lw=0.5)

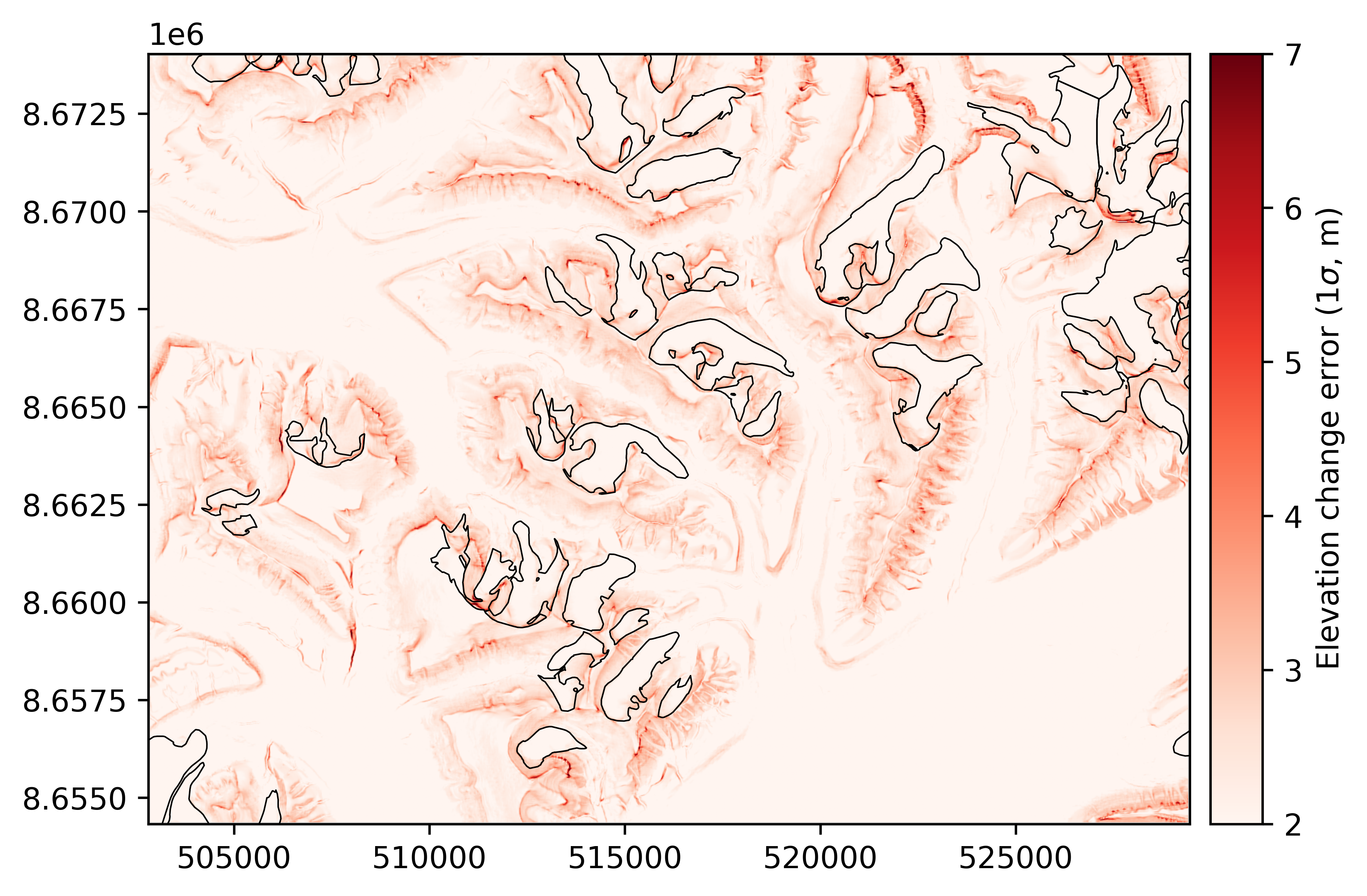

dh_err.plot(ax="new", vmin=2, vmax=7, cmap="Reds", cbar_title=r"Elevation change error (1$\sigma$, m)")
vect_gla.plot(dh_err, fc='none', ec='k', lw=0.5)

# Save to file
dh_err.save("dh_error.tif")
_images/819ebd2daa96161e54674720b6e091fa3726f80d3d6cb5ce267e57cc68fcfe7d.png _images/ddb6ff105876106b00fb4ede268dd9e3b73b6914303f581deb44db669c7ccc9f.png

More examples#

To dive into more illustrated code, explore our gallery of examples that is composed of:

  • An Basic section on simpler routines (terrain attributes, pre-defined coregistration and uncertainty pipelines),

  • An Advanced section using advanced pipelines (for in-depth coregistration and uncertainty analysis).

See also the concatenated list of examples below.
